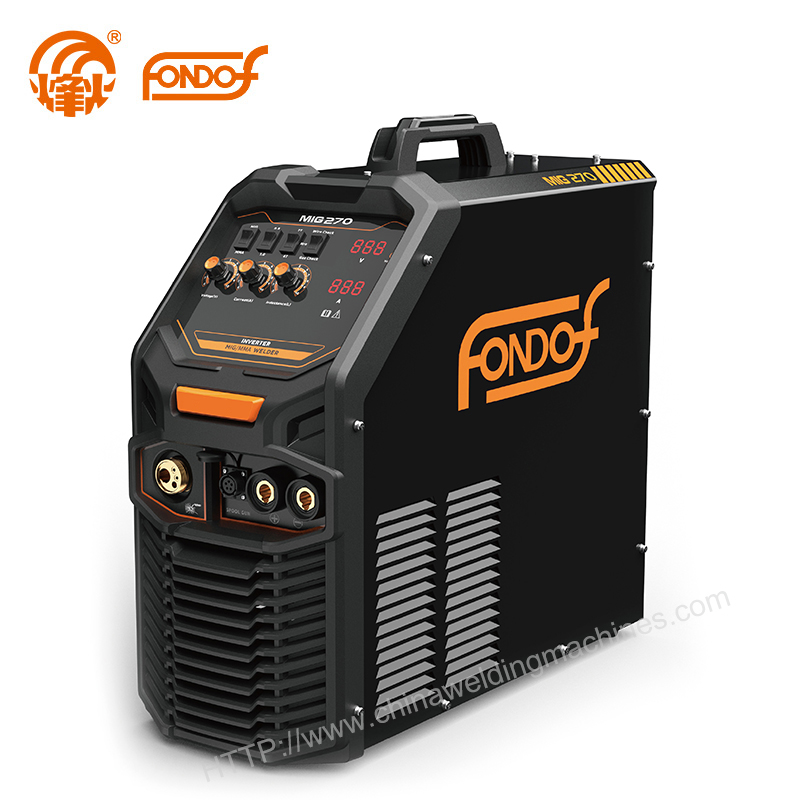

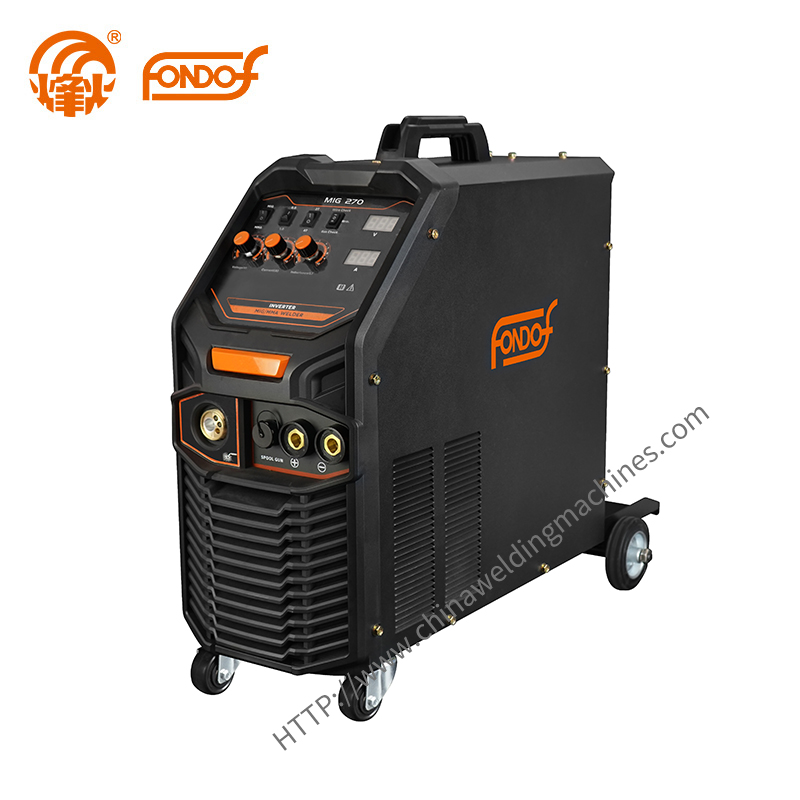

MIG 270
Features:
IGBT Inverter technology
MIG ,MMA function .
Display output voltage and current ,
constanct stable arc
Easy to operate ;
With wire select .
With spatter control ,
With high speed wire feeder .
With 2T/4T function ,
| Parameters | MIG 270 |
| Input Voltage (V) | AC380V |
| Frequency (Hz) | 50/60 |
| Phase | 3 |
| Rated Input Current (A)(MIG) | 18 |
| Rated Input Current (A)(MMA) | / |
| Rated Input Power (KVA)(MIG ) | 11.8 |
| Rated Input Power (KVA)(MMA ) | / |
| Wire feeding speed（M/MIN) | 2.0-24 |
| Welding Current (A)(MIG ) | 50~270 |
| Welding Current (A)(MMA ) | 30~220 |
| Welding voltage(V) | 16.5~27.5 |
| No-load Voltage (V) | 56 |
| Rated Duty Cycle(%) 40℃(MIG ) | 35% |
| Rated Duty Cycle(%) 40℃(MMA ) | 60% |
| Wire diameter (mm) | 0.8/1.0 |
| Protection Class | IP21S |
| Insulation Grade | F |
| Dimension(mm) | 604*250*571 |
| Weight(Kg) | 23.8 |
