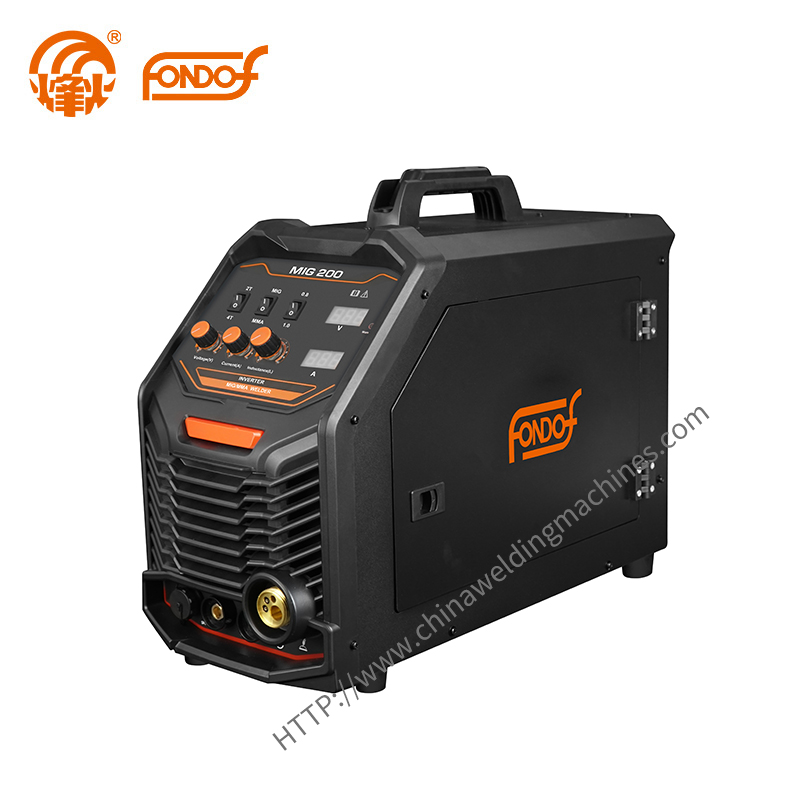

MIG 200
Features:
IGBT Inverter technology
1KG&5KG ,Gas&gasless wire ,
MIG ,MMA function .
constanct stable arc
Easy to operate ;
| Parameters | MIG 200 |
| Input Voltage (V) | AC220V |
| Frequency (Hz) | 50/60 |
| Phase | 1 |
| Rated Input Current (A)(MIG) | 34 |
| Rated Input Current (A)(MMA) | 29 |
| Rated Input Power (KVA)(MIG ) | 7.5 |
| Rated Input Power (KVA)(MMA ) | 6.4 |
| Wire feeding speed（M/MIN) | 2-24M/min |
| Welding Current (A)(MIG ) | 50-200A |
| Welding Current (A)(MMA ) | 50-160A |
| Welding voltage(V) | 16.5-24V |
| No-load Voltage (V) | 61 |
| Rated Duty Cycle(%) 40℃(MIG ) | 25% |
| Rated Duty Cycle(%) 40℃(MMA ) | 30% |
| Wire diameter (mm) | 0.8/1.0 |
| Protection Class | IP21S |
| Insulation Grade | F |
| Dimension(mm) | 585*236*427 |
| Weight(Kg) | 15 |
